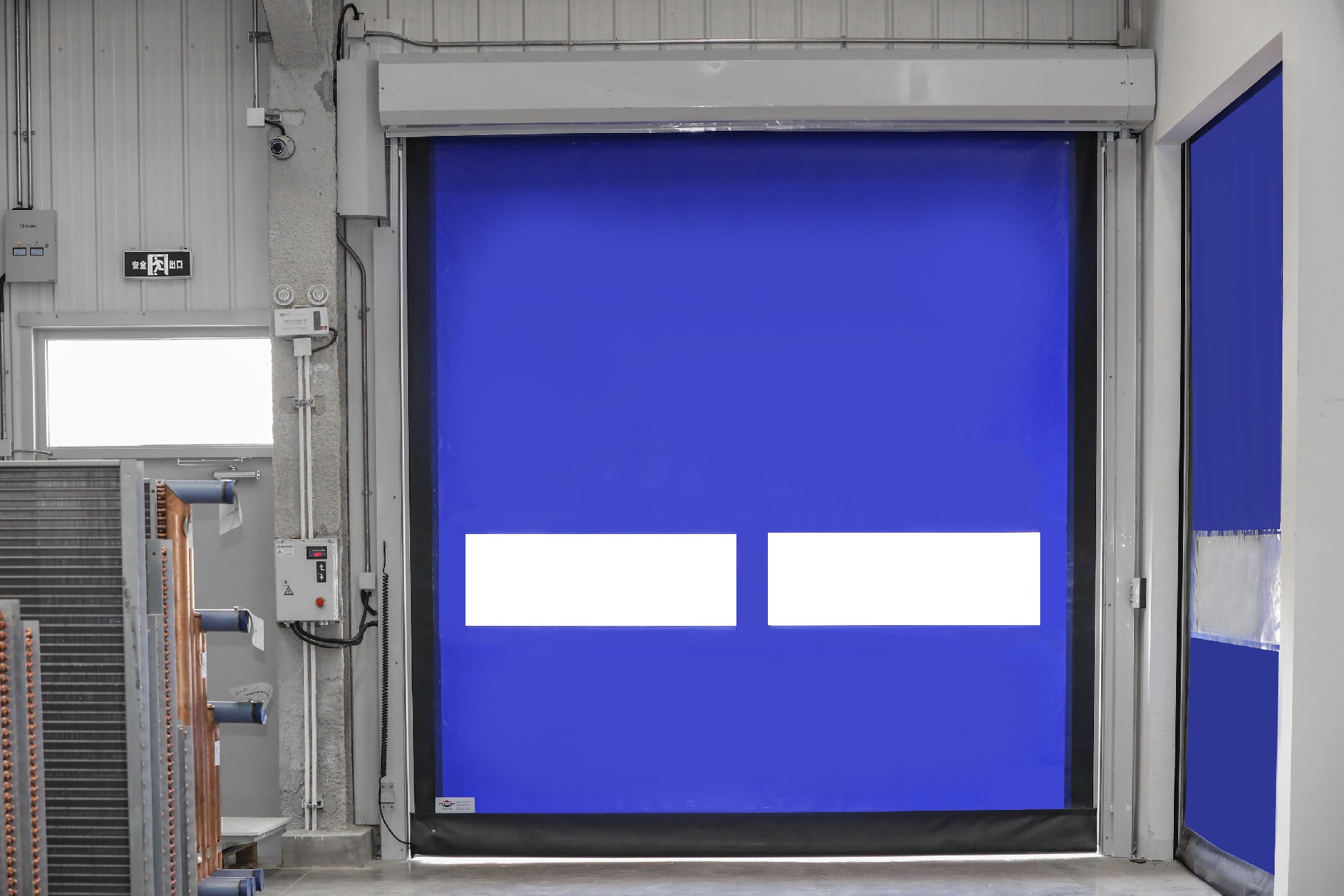

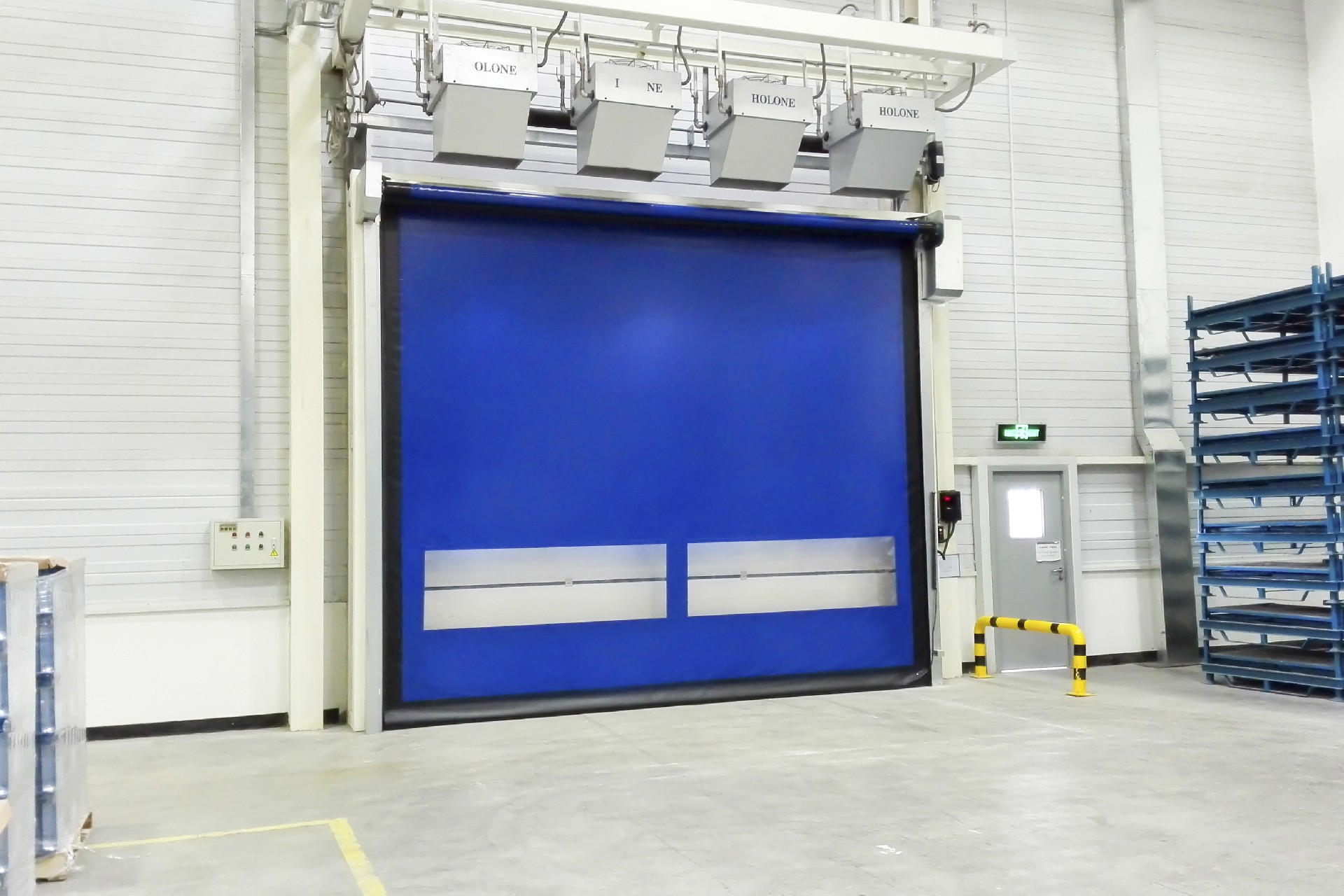

HSR-EPB Exterior High Speed Rolling Shutter Door
It is annti-collision reset, safe and efficient. It is widely used in automobile, medicine, food, electronics, high precision manufacturing and other industries with high environmental requirements.
Technical description:
●Door size:
Minimum size W2000/H2000
Maximum size W5000/H5000
●Door opening/closing speed:
Minimum closing speed 0.8m/s
Maximum opening speed 1.5m/s
●Door panel material:
0.8mm PVC curtain/ yellow, orange, blue optional
●Door curtain window:
1.2mm transparent window (optional)
●Combined door frame:
optional
●Motor cover:
optional
●Scroll cover:
optional
●Installation position:
External door
●Open configuration (optional) :
Remote control/3-key button/ geomagnetic/radar/pull-cord switch
●Service life:
More than 1 million times
●Oprerating ambient temperature:
- 10 ℃ ~ + 40 ℃
Product features:
The integral curtain fabric design is adopted for anti-collision high speed doors. The special curtain structure has excellent wind resistance and sealing performance.
The innovative soft bottom edge design with anti-collision reset function can avoid accidents, which greatly reduces the door curtain damage caused by accidental collision, and reduces the mainte-nance cost.
It can be used as either an external or internal door, for applications that require frequent and fast opening and clean environment.
Typical application industries: automobile manufacturing, food, medicine, clean plants, puri?cation workshops, etc.
